TECHNICAL HIGHLIGHTS

-Torque control input for basic winding or tension control, with overspeed limiting

-Switch selectable Tach or Armature voltage feedback

-Volt free change over contacts for zero speed and/or stall

-PLC compatible input and output signals

-Extra 50% peak torque for 30secs prior to stall trip operation

-On board relay indicates zero speed and/or motor overload

SIGNAL INPUTS:

-Speed

-Torque

-Auxiliary speed inputs +ve and -ve

-4-20mA and 0-20mA

-Drive run

-Tachogenerator

SIGNAL OUTPUTS:

-Speed

-Current

-Setpoint ramp

-Total demand

-Zero speed and stall relay driver

– +/-12 +/- 24v rails

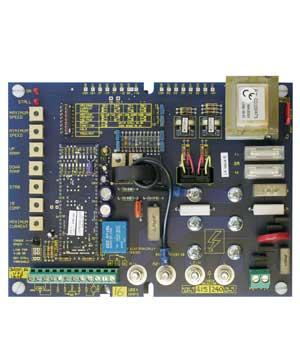

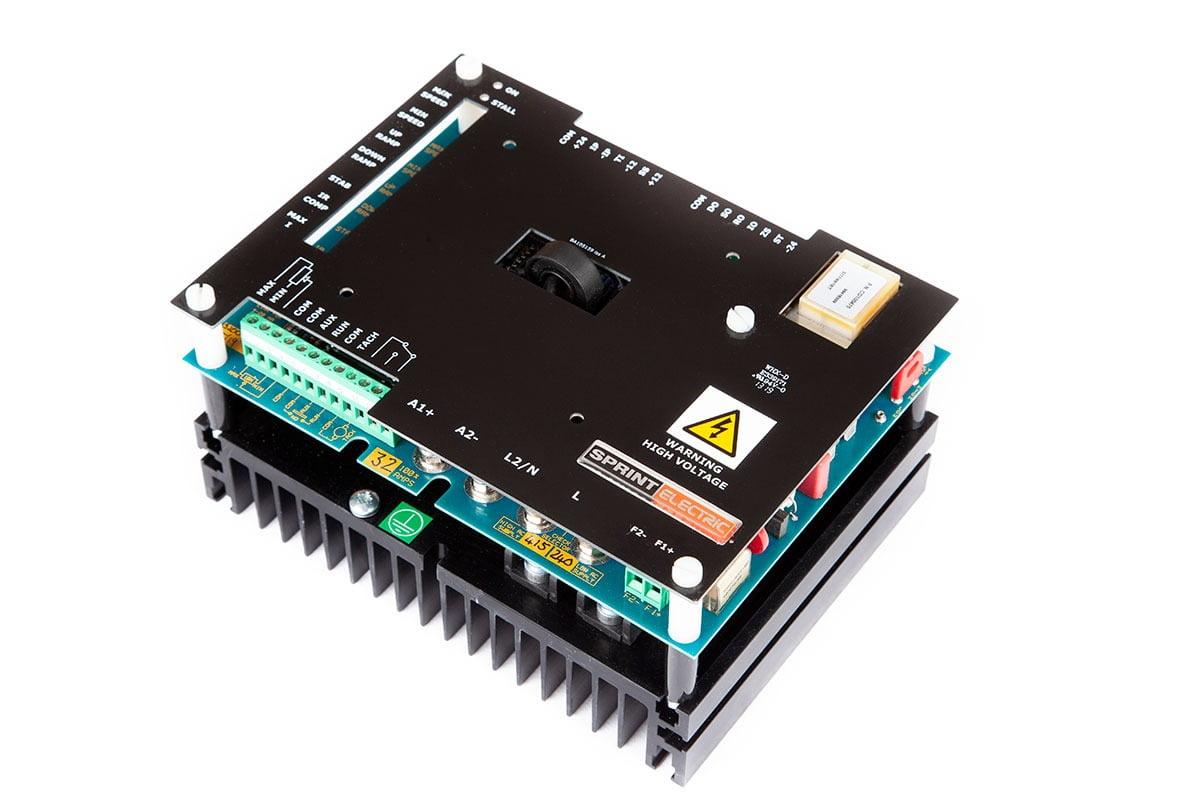

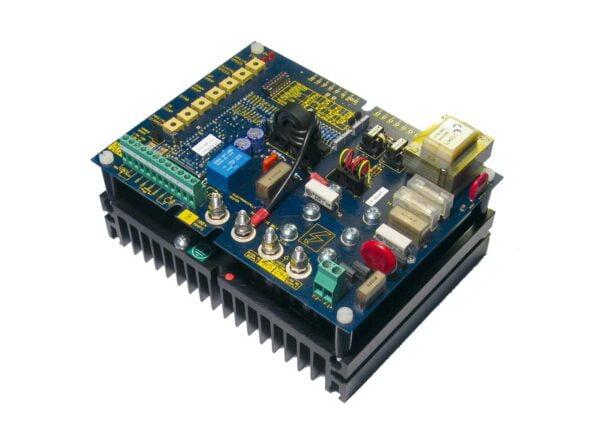

The 3200i/32 is one of the Sprint Electric Open Chassis Mount DC Drives range of products

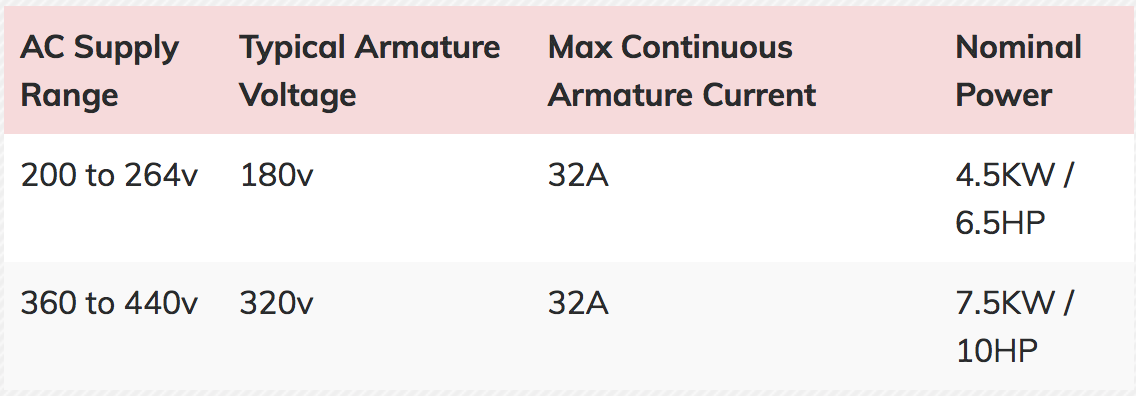

Ratings

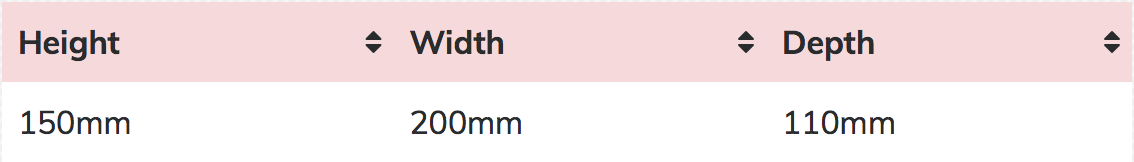

Dimensions

AT A GLANCE

-Fully isolated control electronics

-Numerous inputs and outputs for complex system applications

-Overspeed limit

-Over torque limit

-Inverse time overload

-50% stall threshold

-Phase angle clamp

-Precision Reference

-Precision tach rectifier
