● Excellent Control Performance

Adopting PG-free vector control mode, excellent control performance

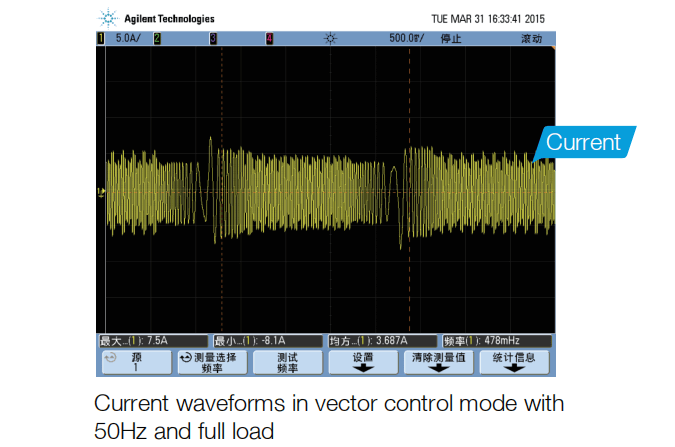

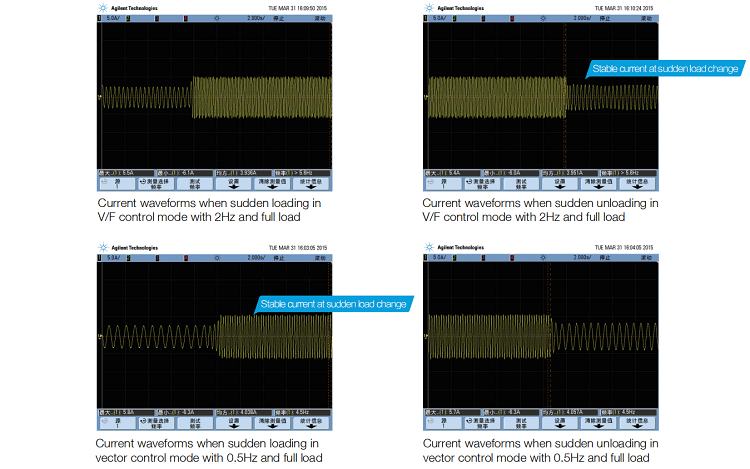

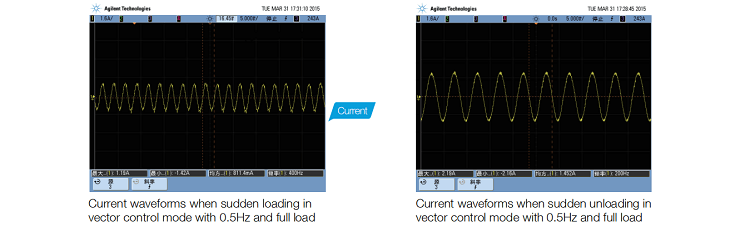

Excellent vector control performance

Excellent motor drive performance

Excellent high-frequency running performance

● Optimized Structure Design

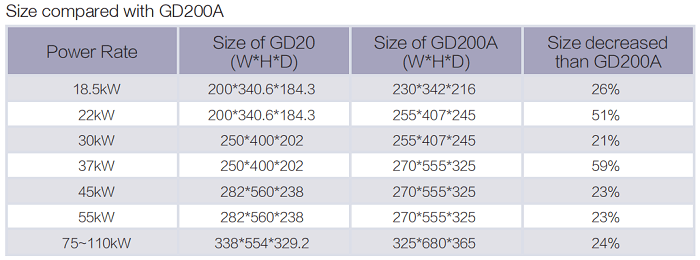

Optimized spare utilization, models (≥18.5kW) is much smaller than existing inverters

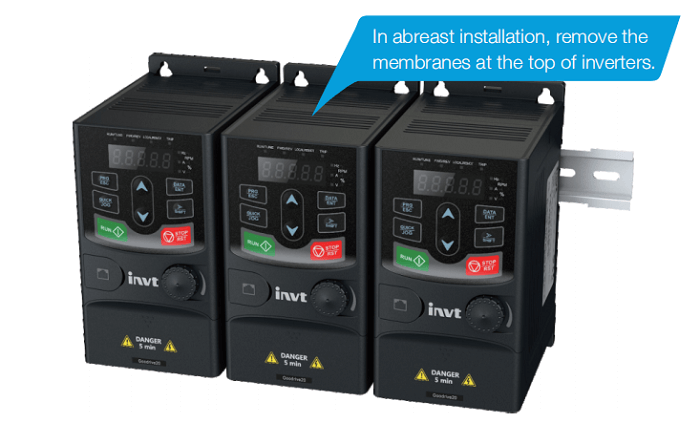

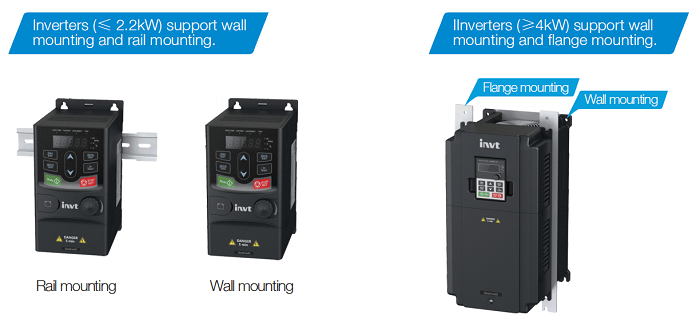

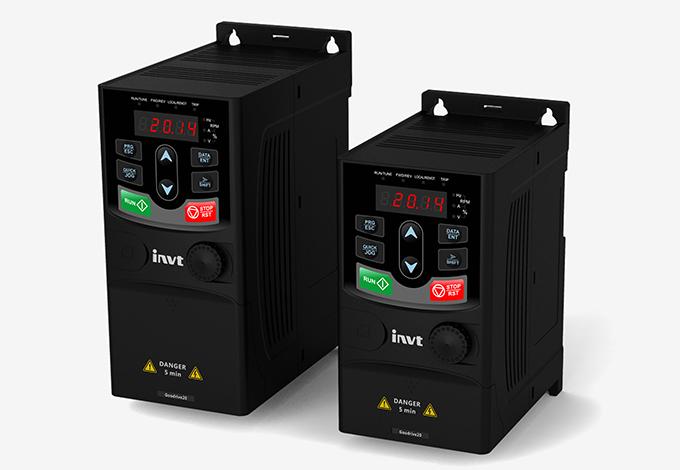

Mini design for inverters (≤ 2.2kW), abreast installation of multiple inverters, reducing installation space

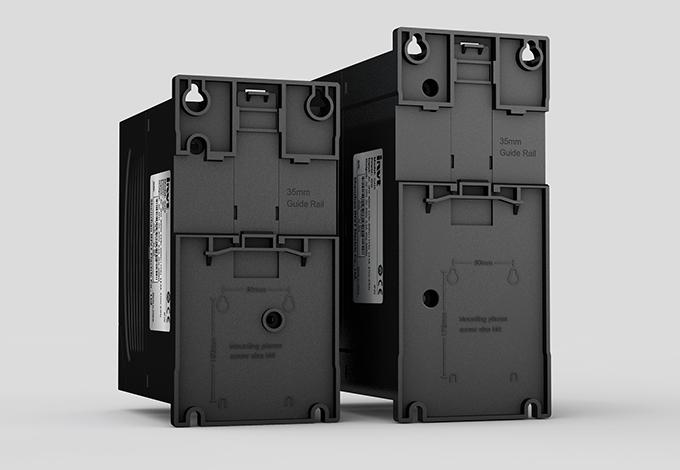

Flexible installation ways

● Multi-function and easy to use

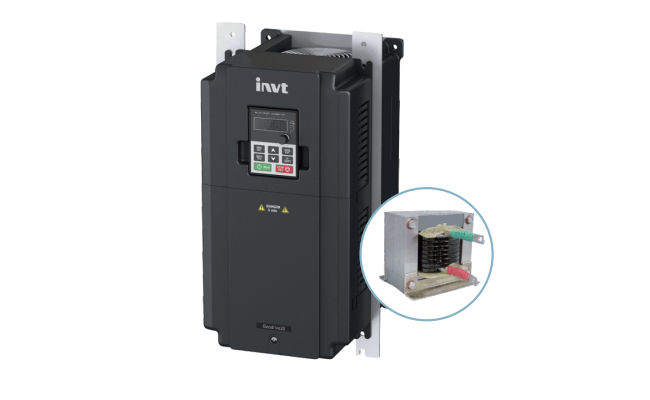

DC reactors are built-in inverters ≥18.5kW

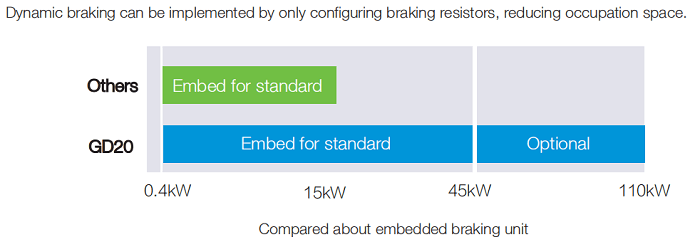

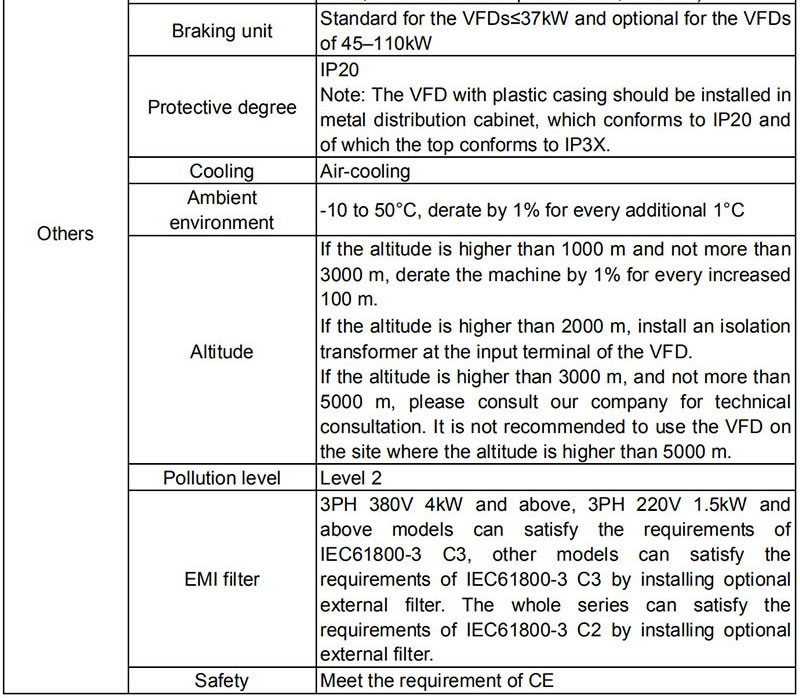

The braking unit is built-in and standard for inverters ≤37kW but optional for inverters of 45-110kW

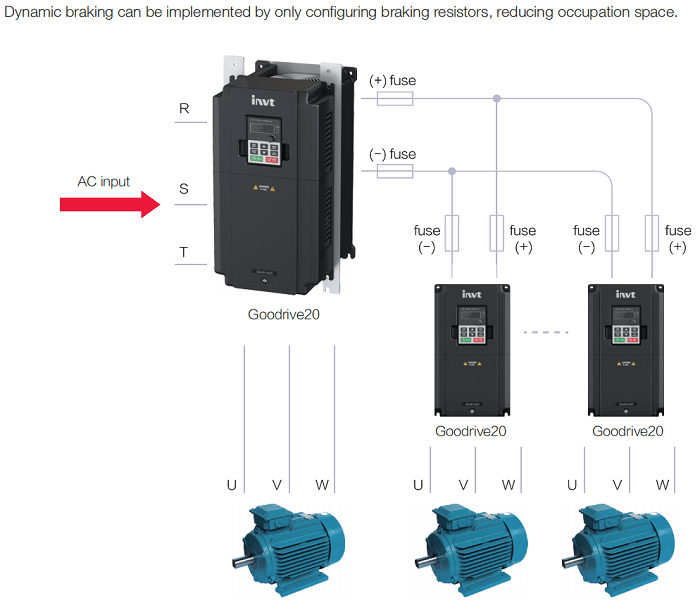

Inverters (380V; ≥4kw) support the DC bus sharing solution

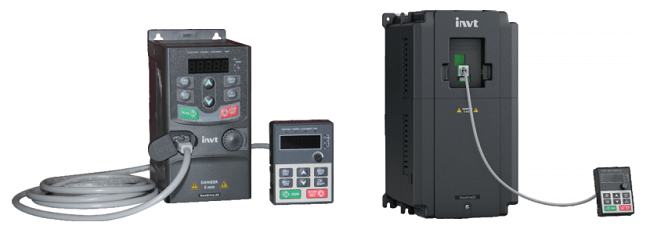

Support of external keypad

GD20 series inverters can be configured with LED keypad which has the data copy function to upload or download the parameters.

● Diverse Application Requirements

Simple PLC, multi-speed control, built-in PID, torque control, multi-point V/F curve, multiple braking methods, instantaneous power failure without stopping, etc.

● Applications

Vector control platform products, powerful, excellent performance, can be widely used in small and medium power applications, such as food machinery, plastic machinery, ceramic equipment, petroleum machinery, cable machinery, air compressors, machine tools, woodworking machinery, textile machinery, printing and packaging equipment, chemical equipment, environmental protection equipment, transportation equipment, etc.
